Router KSCYng-re0

10 Router KSCYng-re0

10.1 Network topology around KSCYng-re0

The network topology around router KSCYng-re0 is shown in figure 41

Figure 41: Neighborhood of router KSCYng-re0

In figure 41, a black arrow indicates that the IGP metric of the link did not change. A blue arrow indicates that the metric changed, but the link did not fail. A red arrow indicates that the link failed during the monitoring period.

10.2 LSPs produced by router KSCYng-re0

This router produced the following LSPs during the monitored period.

This router produced 1459 LSPs 0000.0000.0019.00-00 during the monitored period. The evolution of the sequence number of those LSPs is shown in figure 42.

Figure 42: Sequence numbers of the LSPs produced by 0000.0000.0019.00-00

10.3 Prefixes advertised by router KSCYng-re0

This router advertised the following prefixes :

prefix 198.32.12.88/29
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.10.232/29
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.8.238/32
- This prefix was up during the whole period. The metric of this prefix was set at 0 during the whole period.
prefix 198.32.10.80/28
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 2001:468:ff:1300::/56
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 2001:468:ff:1213::/64
- This prefix was up during the whole period. The metric of this prefix was set at 548 during the whole period.
prefix 2001:468:13::/48
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.8.80/31
- This prefix was up during the whole period. The metric of this prefix was set at 548 during the whole period.
prefix 198.32.154.200/29
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 2001:468:ff:1113::/64
- This prefix failed 1 times during the whose period. The evolution of its metric is shown in figure 43.

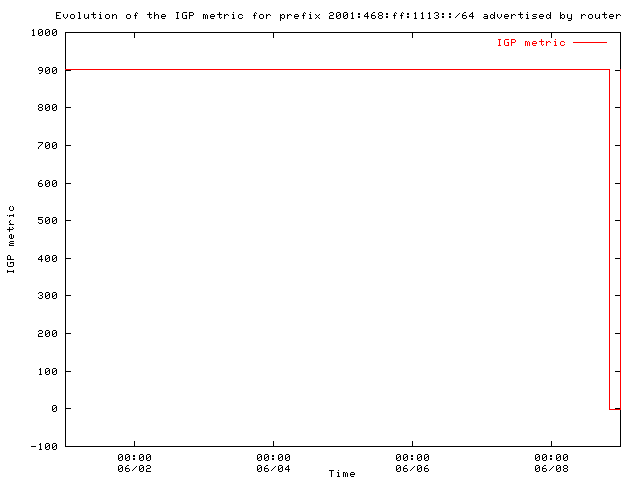

  Figure 43: Evolution of the IGP metric for prefix 2001:468:ff:1113::/64 advertised by router
prefix 198.32.11.56/30
- This prefix failed 2 times during the whose period. The evolution of its metric is shown in figure 44.

  Figure 44: Evolution of the IGP metric for prefix 198.32.11.56/30 advertised by router
prefix 198.32.12.212/30
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.12.80/29
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.8.197/32
- This prefix was up during the whole period. The metric of this prefix was set at 0 during the whole period.
prefix 198.32.8.12/30
- This prefix was up during the whole period. The metric of this prefix was set at 639 during the whole period.
prefix 2001:468:ff:1013::/64
- This prefix was up during the whole period. The metric of this prefix was set at 639 during the whole period.
prefix 198.32.8.92/31
- This prefix failed 1 times during the whose period. The evolution of its metric is shown in figure 45.

  Figure 45: Evolution of the IGP metric for prefix 198.32.8.92/31 advertised by router
prefix 2001:468::1/128
- This prefix was up during the whole period. The metric of this prefix was set at 0 during the whole period.
prefix 2001:468:ff:741::/64
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.8.176/30
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
