12.1 Network topology around NYCMng-re0

The network topology around router NYCMng-re0 is shown in figure 50

Figure 50: Neighborhood of router NYCMng-re0

In figure 50, a black arrow indicates that the IGP metric of the link did not change. A blue arrow indicates that the metric changed, but the link did not fail. A red arrow indicates that the link failed during the monitoring period.

12.2 LSPs produced by router NYCMng-re0

This router produced the following LSPs during the monitored period.

This router produced 1446 LSPs 0000.0000.0021.00-00 during the monitored period. The evolution of the sequence number of those LSPs is shown in figure 51.

Figure 51: Sequence numbers of the LSPs produced by 0000.0000.0021.00-00
This router produced 1442 LSPs 0000.0000.0021.02-00 during the monitored period. The evolution of the sequence number of those LSPs is shown in figure 52.

Figure 52: Sequence numbers of the LSPs produced by 0000.0000.0021.02-00

12.3 Prefixes advertised by router NYCMng-re0

This router advertised the following prefixes :

prefix 2001:468:ff:1500::/56
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.12.220/30
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.8.184/30
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.154.248/29
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.10.112/28
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.154.0/25
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.8.82/31
- This prefix was up during the whole period. The metric of this prefix was set at 700 during the whole period.
prefix 198.32.8.84/31
- This prefix was up during the whole period. The metric of this prefix was set at 233 during the whole period.
prefix 198.32.8.238/32
- This prefix was up during the whole period. The metric of this prefix was set at 0 during the whole period.
prefix 198.32.12.120/29
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 2001:410:101:23::/64
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 2001:468:15::/48
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 2001:410:101:24::/64
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.8.199/32
- This prefix was up during the whole period. The metric of this prefix was set at 0 during the whole period.
prefix 2001:770:88:5::/64
- This prefix failed 1 times during the whose period. The evolution of its metric is shown in figure 53.

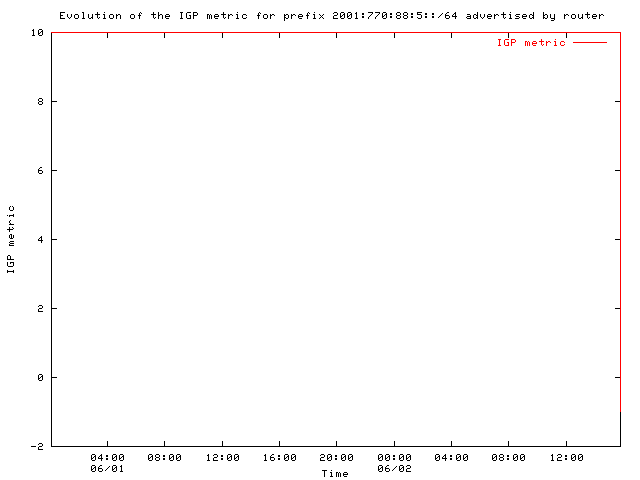

  Figure 53: Evolution of the IGP metric for prefix 2001:770:88:5::/64 advertised by router
prefix 198.32.11.60/30
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.10.248/29
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 2001:468:ff:f15::/64
- This prefix was up during the whole period. The metric of this prefix was set at 700 during the whole period.
