Router WASHng-re1

15 Router WASHng-re1

15.1 Network topology around WASHng-re1

The network topology around router WASHng-re1 is shown in figure 62

Figure 62: Neighborhood of router WASHng-re1

In figure 62, a black arrow indicates that the IGP metric of the link did not change. A blue arrow indicates that the metric changed, but the link did not fail. A red arrow indicates that the link failed during the monitoring period.

15.2 LSPs produced by router WASHng-re1

This router produced the following LSPs during the monitored period.

This router produced 1480 LSPs 0000.0000.0024.00-00 during the monitored period. The evolution of the sequence number of those LSPs is shown in figure 63.

Figure 63: Sequence numbers of the LSPs produced by 0000.0000.0024.00-00

15.3 Prefixes advertised by router WASHng-re1

This router advertised the following prefixes :

prefix 198.32.8.202/32
- This prefix was up during the whole period. The metric of this prefix was set at 0 during the whole period.
prefix 198.32.8.84/31
- This prefix was up during the whole period. The metric of this prefix was set at 233 during the whole period.
prefix 198.32.11.144/29
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 2001:468:18::/48
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 2001:468:ff:1518::/64
- This prefix was up during the whole period. The metric of this prefix was set at 233 during the whole period.
prefix 198.32.12.244/30
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.14.32/27
- This prefix failed 23 times during the whose period. The evolution of its metric is shown in figure 64.

  Figure 64: Evolution of the IGP metric for prefix 198.32.14.32/27 advertised by router
prefix 198.32.12.168/29
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.8.112/30
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 2001:468:ff:1800::/56
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.8.64/30
- This prefix was up during the whole period. The metric of this prefix was set at 846 during the whole period.
prefix 198.32.154.224/29
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 198.32.8.238/32
- This prefix was up during the whole period. The metric of this prefix was set at 0 during the whole period.
prefix 198.32.12.232/30
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 2001:798:2014:20aa::/126
- This prefix failed 6 times during the whose period. The evolution of its metric is shown in figure 65.

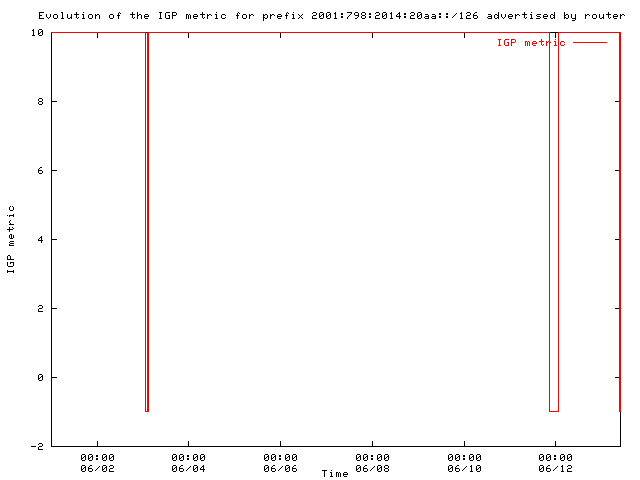

  Figure 65: Evolution of the IGP metric for prefix 2001:798:2014:20aa::/126 advertised by router
prefix 198.32.10.160/28
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
prefix 2001:468:ff:118::/64
- This prefix was up during the whole period. The metric of this prefix was set at 846 during the whole period.
prefix 198.32.12.160/29
- This prefix was up during the whole period. The metric of this prefix was set at 10 during the whole period.
